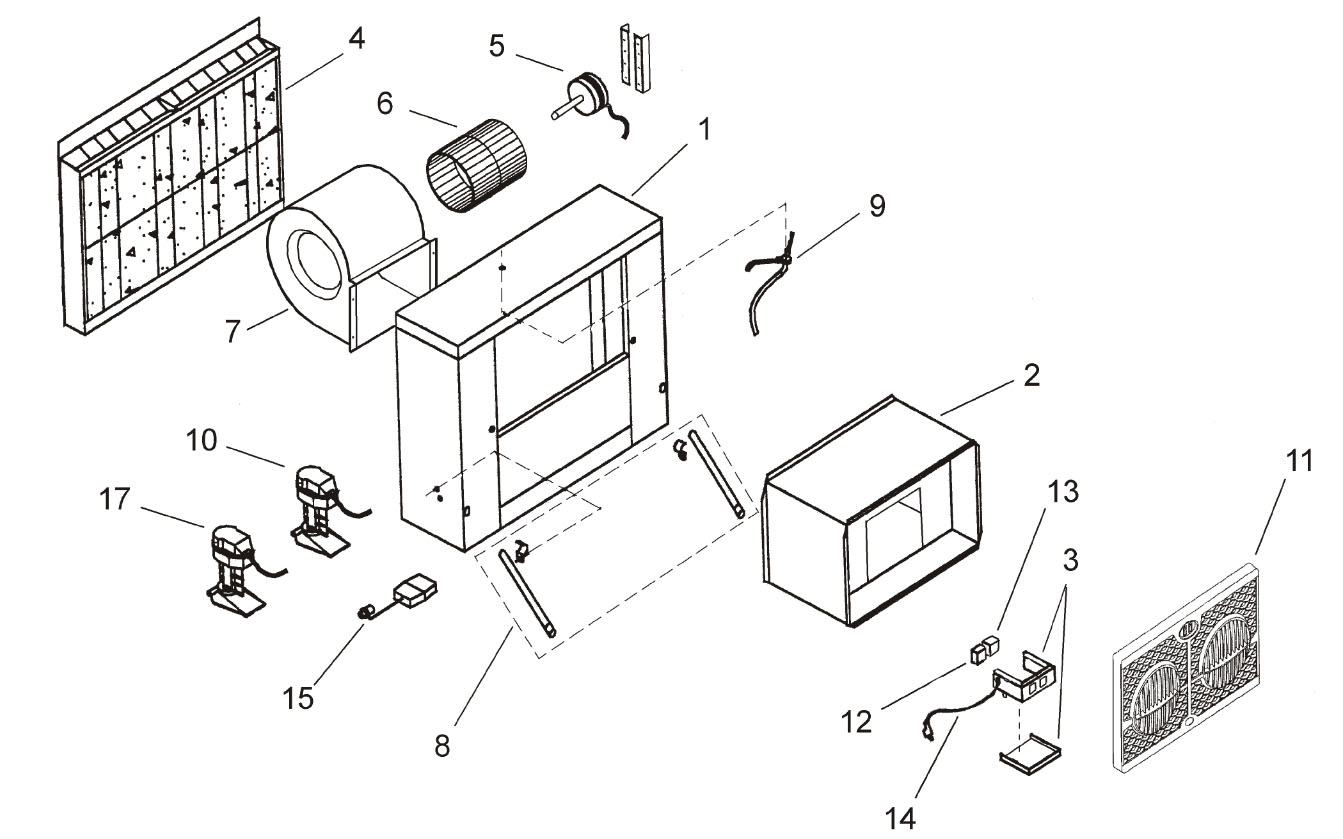

Brisa HE2910-2913 Parts Breakdown
Manufacturer: Phoenix Manufacturing
Model #: HE2910-HE2913
Replaced by: WH2906
Cooling Capacity Square Footage: 100-400
Outlet: Window Duct
Cabinet Dimensions: 20-5/8"h x 31-1/8"w x 9"d
Outlet Dimension: 20.75" x 13.25"
Pad Size: 20"h x 26"w x 3"d (rigid media)
| Fig. # |
Description |
Original Part # |
Replacement Part # |
| 1 |
Cabinet Assembly |
N/A |
WH2906 |
| 2 |
Duct Assembly |
N/A |
N/A |
| 3 |
Switch Box Assembly |
N/A |
N/A |
| 4 |
Pad Frame Assembly Complete |
5-2-258 |
Call for Quote |
| 4a |
Rigid Media Pad Replacement |
5-2-256 |
5-2-256 |
| 5 |
Blower Motor |
5-7-35 |
5-7-35 |
| 6 |
Blower Wheel |
5-3-93 |
5-3-93 |
| 7 |
Blower Housing |
5-3-42 |
5-3-182 |
| 8 |
Support Leg Assembly |
5-1-17 |
Call for Quote |
| 9 |
Water Distributor Assembly |
5-6-193 |
5-6-193 |
| 10 |
Pump |
5-6-221 |
1150 |
| 11 |
Grille Assembly |
5-4-14 |
5-4-14 |
| 12 |
Pump Switch |
5-7-147 |
5-7-147 |
| 13 |
Motor Switch (High/Low/Off) |
5-7-148 |
5-7-148 |
| 14 |
Power Supply Cord |
5-7-90 |
5-7-90 |
| 15 |
Float Vslve |
5-6-1 |
4132 |
| 17 |
Drain Pump Replacement |
N/A |
PDP12 |
