Brisa BW5500-5502 Parts Breakdown
Manufacturer: Phoenix Manufacturing
Model #: BW5500/1/2
Replaced by: BW5002
Cooling Capacity Square Footage: 1400-1800
Outlet: Window Duct
Cabinet Dimensions: 36"h x 33-1/4"w x 27-1/4"d
Outlet Dimension: 20.75" x 13.25"
Pad Size: 28h" x 20w" x 3"d (2 pieces, high density rigid media)

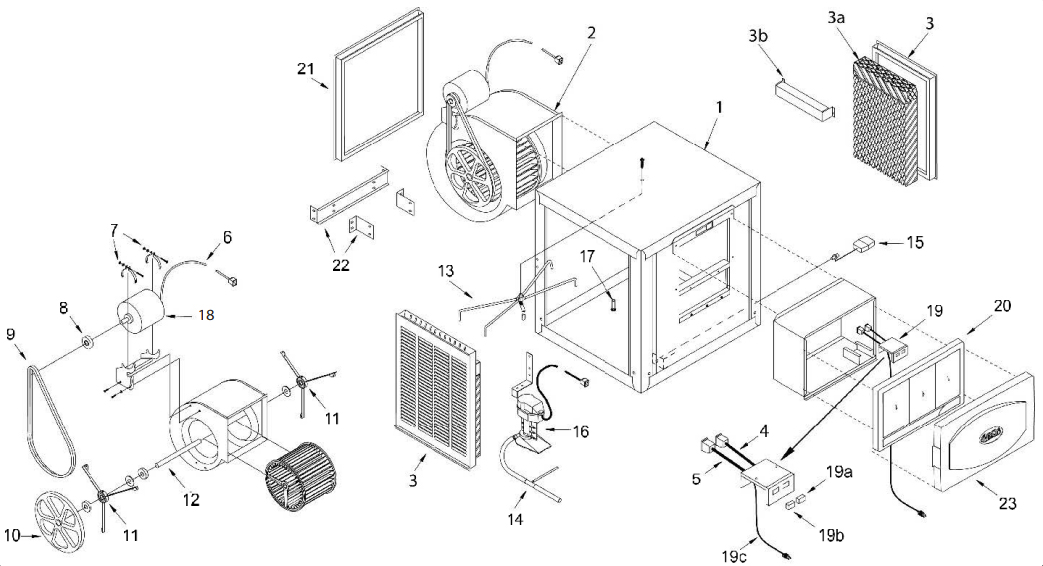

| Fig. # |
Description |
Original Part # |
Replacement Part # |
| 1 |
Cabinet Assembly |
N/A |
BW5002 |
| 2 |
Blower Assembly Complete |
5-3-46 |
5-3-46 |
| 2a |
Blower Wheel |
5-3-35 |
5-3-35 |
| 3 |
Pad Frame Assembly Complete |
5-2-259 |
5-2-259 |
| 3a |
Rigid Media Pad |
5-2-251 |
5-2-251 |
| 3b |
Pad Retaining Wires |
5-2-252 |
5-2-252 |
| 4 |
Pump Receptacle |
5-7-126 |
7587 |
| 5 |
Motor Cord Receptacle |
5-7-127 |
7584 |
| 6 |
Motor Cord |
5-7-37 |
7545 |
| 7 |
Motor Mounting Clamps |
5-7-28 |
2710 |
| 8 |
Motor Sheave |
5-3-172 |
6280 |
| 9 |
Belt |
5-3-19 |
6558 |
| 10 |
Blower Pulley |
5-3-58 |
6330 |
| 11 |
Bearing Assembly |
5-3-38 |
5-3-38 |
| 12 |
Shaft |
5-3-2 |
5-3-2 |
| 13 |
Water Distributor Assembly |
5-6-202 |
4502 |
| 14 |
Bleed Off Tee & Hose |
5-6-3 |
563KIT |
| 15 |
Float Valve |
5-6-1 |
4132 |
| 16 |
Pump Assembly |
5-6-34 |
5-6-34 |
| 17 |
Overflow Standpipe Kit |
5-6-5 |
1556 |
| 18 |
Motor |
5-7-42 |
2204 |
| 19 |
Switch Box Assembly |
5-7-149 |
5-7-149 |
| 19a |
Motor Switch (High/Low/Off) |
5-7-148 |
5-7-148 |
| 19b |
Pump Switch |
5-7-147 |
5-7-147 |
| 19c |
Power Supply Cord |
5-7-90 |
Call for Quote |
| 20 |
Grille Assembly |
5-4-28 |
5-4-28 |
| 21 |
Access Panel |
5-2-249 |
Call for Quote |
| 22 |
Blower Support Bracket |
5-3-153 |
Call for Quote |
| 23 |
Winterizing Grille Cover |
WGC |
WGC |
