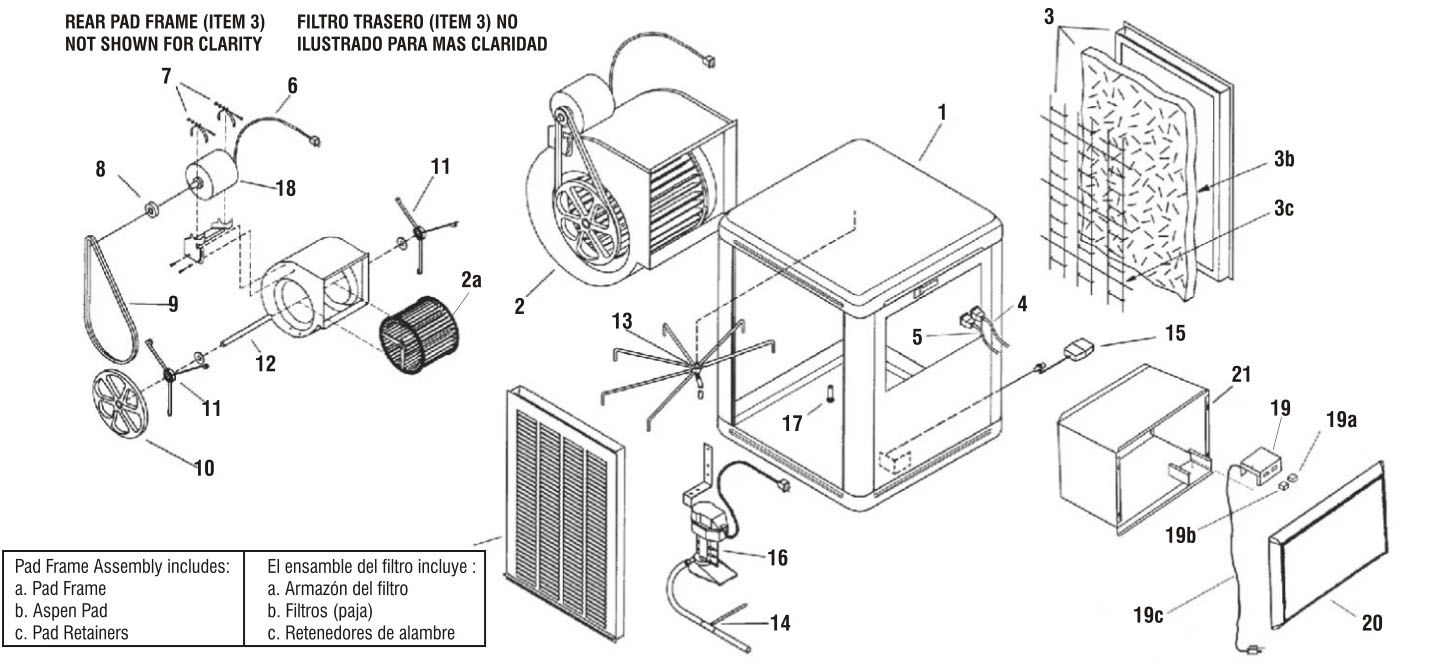

Brisa BW4000-4002 Parts Breakdown
Manufacturer: Phoenix Manufacturing
Model #: BW4000/1/2
Replaced by: BW4002
Cooling Capacity Square Footage: 700-1000
Outlet: Window Duct
Cabinet Dimensions: 36"h x 28"w x 28"d
Outlet Dimension: 20.75" x 13.25"
Pad Size: 29" x 21"
| Fig. # |
Description |
Original Part # |
Replacement Part # |
|---|
| 1 |
Cabinet Assembly |
N/A |
BW4002 |
| 2 |
Blower Assembly Complete |
5-3-44 |
5-3-44 |
| 2a |
Blower Wheel |
5-3-34 |
5-3-34 |
| 3 |
Pad Frame Assembly Complete |
5-2-9A |
5-2-9A |
| 3b |
Aspen Pad |
5-2-218 |
FP2228 (3 per cooler) |
| 3c |
Pad Retaining Wires |
5-2-233 |
Call For Quote |
| 4 |
Pump Receptacle |
5-7-126 |
7587 |
| 5 |
Motor Cord Receptacle |
5-7-95 |
7584 |
| 6 |
Motor Cord |
5-7-37 |
7545 |
| 7 |
Motor Mounting Clamps |
5-7-28 |
2710 |
| 8 |
Motor Sheave |
5-3-31 |
6215 |
| 9 |
Belt |
5-3-17 |
6547 |
| 10 |
Blower Pulley |
5-3-59 |
6314 |
| 11 |
Bearing Assembly |
5-3-37 |
6686 |
| 12 |
Shaft |
5-3-1 |
5-3-1 |
| 13 |
Water Distributor Assembly |
5-6-236 |
4502 |
| 14 |
Bleed Off Tee & Hose |
5-6-3 |
563KIT |
| 15 |
Float Valve |
5-6-1 |
4132 |
| 16 |
Pump Assembly |
5-6-34 |
5-6-34 |
| 17 |
Overflow Standpipe Kit |
5-6-5 |
1556 |
| 18 |
Motor |
5-7-40 |
2202 |
| 19 |
Switch Box Assembly |
5-7-149 |
5-7-149 |
| 19a |
Motor Switch (High/Low/Off) |
5-7-148 |
5-7-148 |
| 19b |
Pump Switch |
5-7-147 |
5-7-147 |
| 19c |
Power Supply Cord |
5-7-90 |
5-7-90 |
| 20 |
Grille Assembly |
5-4-28 |
5-4-28 |
| 21 |
Duct Assembly |
5-4-33 |
Call for Quote |
