SAS Series Downdraft Champion Cooler Commercial Blower Section Parts


THESE MODELS ARE THE BLOWER SECTION ONLY - WET SECTION IS SEPARATE MODULE

Replacement part will LINK to AFTERMAKET REPLACEMENT PARTS, or original equipment when available to us.

If no link is active for the part you need, please call us for a special order quote at 602-997-1256.

Manufacturer: ESSICKAIR / CHAMPION COOLER
Model #: SAS100B, SAS150B
Delivered CFM Range: SAS100 5000-11000, SAS150 7000-17000

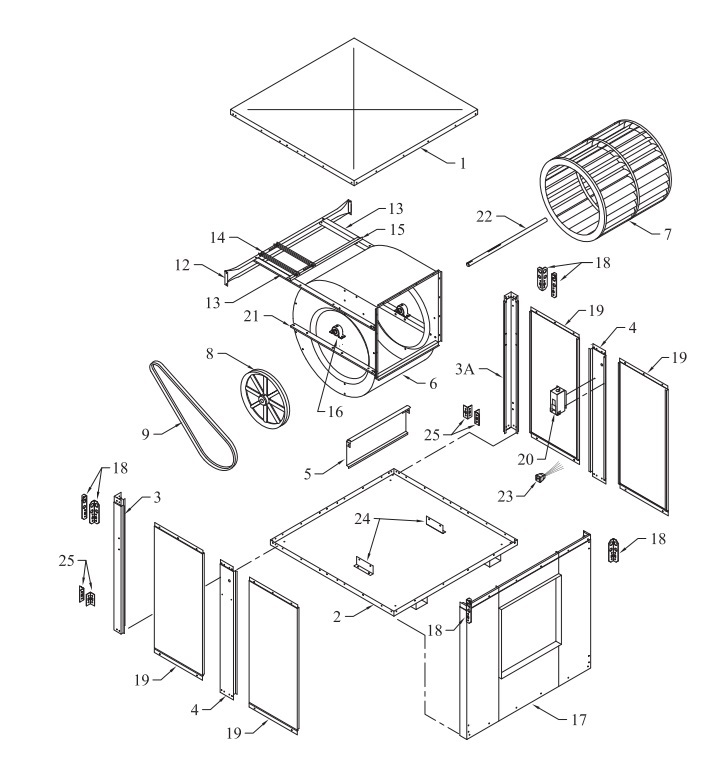

Fig. # Description SAS100B SAS150B
1 Top, Cabinet 218115-003 218116-008
2 Bottom, Cabinet 318115-020 318116-026
3 Corner Post, Left 318115-013 318116-018
3a Corner Post, Right 318115-025 318116-050
4 Divider Channel 218115-014 218116-019
5 Cut-off Plate 320102-002 318112-004
6 Blower Housing 322115-002 320116-001
7 Blower Wheel 21BW 25BW
8 Pulley, Blower Wheel 110297-1 110298-1
9 Drive Belt See Options See Options
10 Motor See Options See Options
11 Pulley, Motor See Options See Options
12 Channel Retainer 214007-001 214007-006
13 Motor Mount Support 214115-004 214116-009
14 Motor Mount Adjustable Channel 214112-002 214112-004
15 Motor Mount Crossbrace 214001-005 214001-009
16 Bearings, Blower 110355 110356
17 Front Panel 318115-009 318116-014
18 Lift Bracket 212104-001 212104-001
19 Inspection Panel 220115-003 220116-004
20 Electrical Junction Box 322009-002 322009-002
21 Bearing Mount Support 206100-001 206100-003
22 Shaft, Blower Wheel 110157 110158
23 Receptacle, Pump 110361 110361
24 Blower Support Bracket 218122-005 218122-005
25 Connect Bracket 214121-001 214121-001
