Champion/Essickair 75/85SD - 95SD Parts Breakdown

 />

Manufacturer: Essickair/Champion
Model #: 75/85SD, 95SD
Replaced by: Phoenix Mfg. H8801
Industry Standard CFM: 8500
Delivered CFM Range: 4000-8500*
Outlet: Sidedraft
Cabinet Dimensions: 41-1/4”w x 41-1/4”d x 53-5/8”h
Outlet Dimension: 21-3/4” x 21-3/4”
Pad Size: 46" x 34"  (1 per pad frame)
Shipping Weight: 300 lbs
Operating Weight: 430 lbs

*Range depends on motor & sheave selection and ductwork static pressure.

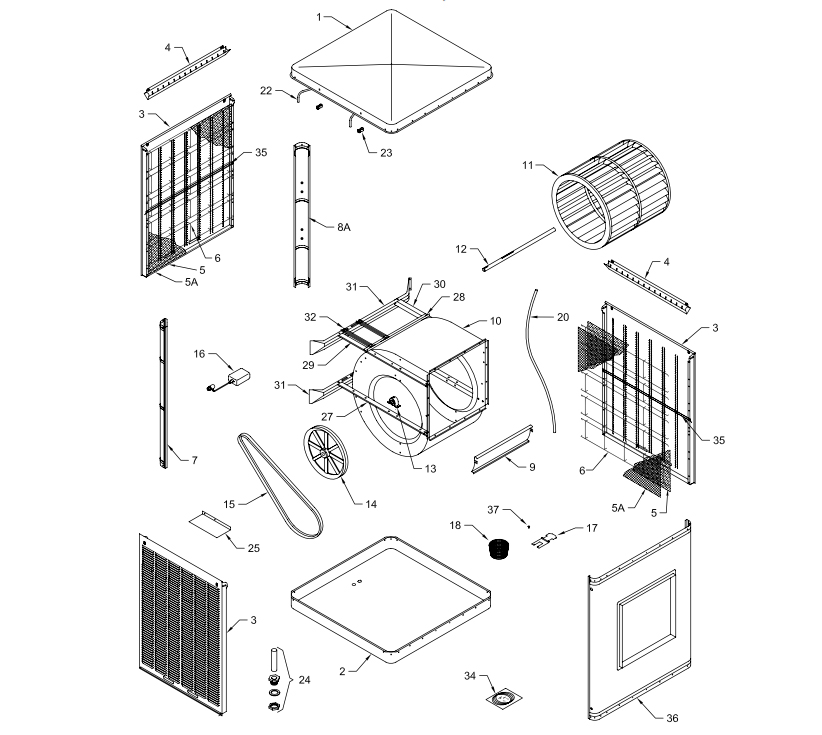

Fig. # Description Original Part # Replacement Part #
1 Top Pan 220905-004 Call for Quote
2 Bottom Pan 220906-004 Call for Quote
3 Pad Frame Complete 322115-105 322115-105
4 Water Trough 226003-004 4803
5 Aspen Pad Media 110096 FP3446 (1 per frame)
6 Pad Retainer 3PW-7 Call for Quote
7 Corner Post, With Float Hole 224003-018 Call for Quote
8 Corner Post, for Pump Mount 224003-045 Call for Quote
9 Cut-Off Plate 320102-002 Call for Quote
10 Blower Housing 322115-002 Call for Quote
11 Blower Wheel 110749 or 21BW Call for Quote
12 Shaft 110157 Call for Quote
13 Bearing 110357 WUCP20516
14 Blower Pulley 110280 Call for Quote
15 Belt 110217 6583
16 Float Valve FL3/8 4164
17 Pump Mount 218001-031 Call for Quote
18 Pump Screen 281001-001 4220
20 Pump Hose 310716 4372
22 Water Distributor Assembly 3D-7 5-6-184
23 Holder, Water Distributor 110574 4630
24 Overflow Assembly 3OA-1 1556
25 Air Baffle 220116-006 Call for Quote
27 Bearing Mount Support 214115-006 Call for Quote
28 Motor Mount Crossbrace 214001-005 Call for Quote
29 Motor Mount Support, Right 214115-002 Call for Quote
30 Motor Mount Support, Left 214115-002 Call for Quote
31 Channel Retainer Support 218115-001 Call for Quote
32 Motor Mount Adjustable Channel 214112-004 Call for Quote
34 Bleed Off Kit 310586 5009
35 Deflector Strip 222115-003 Call for Quote
36 Front Panel 320115-001 Call for Quote
37 Pump Retainer 110714 Call for Quote
38 (Not Shown) Motor Many Possible Determine Size and Call for Quote
