Champion/Essickair 14/21SD Parts Breakdown

 />

Manufacturer: Essickair/Champion
Model #: 14/21SD
Replaced by: Phoenix Mfg. H2231
Industry Standard CFM: 20000
Delivered CFM Range: 8000-20000*
Outlet: Sidedraft
Cabinet Dimensions: 62”w x 62”d x 62”h
Outlet Dimension: 31-3/4” x 31-3/4”
Pad Size: 28" x 27"  (2 per pad frame)
Shipping Weight: 670 lbs
Operating Weight: 950 lbs

*Range depends on motor & sheave selection and ductwork static pressure.

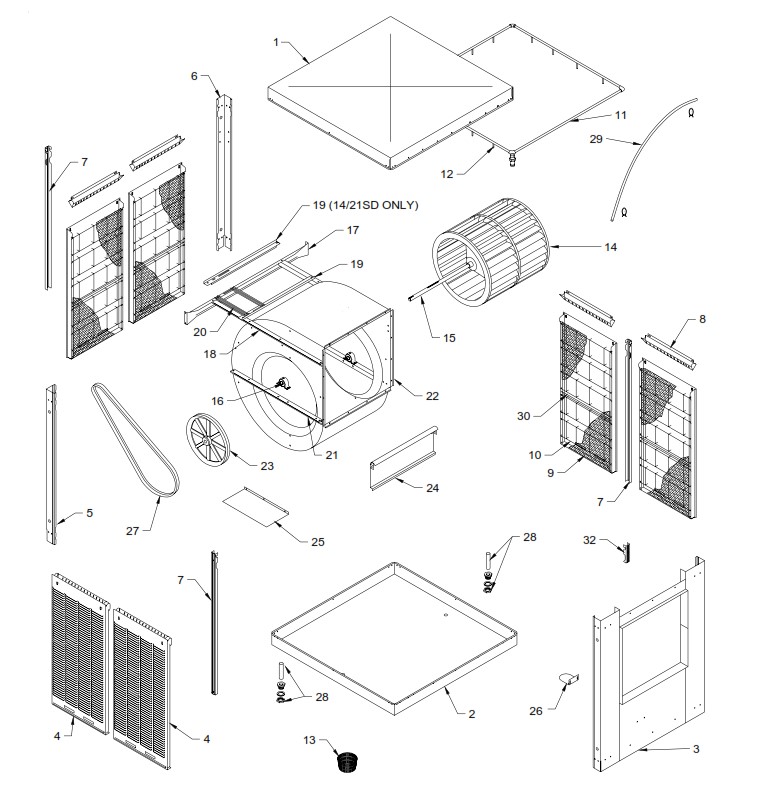

Fig. # Description Original Part # Replacement Part #
1 Top Pan 216117-005 Call for Quote
2 Bottom Pan 216117-006 Call for Quote
3 Front Panel 318117-002 Call for Quote
4 Pad Frame Complete 322117-104 322117-104
5 Corner Post Right 218003-002 Call for Quote
6 Corner Post Left 218003-004 Call for Quote
7 Center Post 218002-002 Call for Quote
8 Water Trough 226003-002 4801
9 Aspen Pad Media (2 per frame) 110098 FP2828
10 Pad Retainers 3PW-9 7973
11 Water Distributor Assembly 3D-13 Call for Quote
12 Nozzle for Water Distributor 110569 4662
13 Pump Screen 281001-001 4220
14 Blower Wheel 110751 or 29BW Call for Quote
15 Shaft 110159 5-3-6
16 Bearings 110358 WUCP20619
17 Channel Retainer Support 214007-008 Call for Quote
18 Motor Mount Support 214117-003 Call for Quote
19 Motor Mount Crossbrace 214001-007 Call for Quote
20 Motor Mount Adjustable Channel 214112-003 Call for Quote
21 Bearing Mount Support 212103-001 Call for Quote
22 Blower Housing 320117-001 Call for Quote
23 Blower Pulley 110298 5-3-199
24 Cut off Plate 318112-003 Call for Quote
25 Air Baffle 220116-005 Call for Quote
26 Pump Mount 214003-023 Call for Quote
27 Belt 110219 66112
28 Over Flow Assembly 3OA-1 9240
29 Water Delivery Tube 310717 4388
30 Deflecter Strip 222117-002 Call for Quote
31 Float Mount Call for Quote
32 Water Distributor Support Bracket 218002-003 Call for Quote
