Champion Commercial Evaporative Cooler Wet Section Parts


THESE MODELS ARE THE WET SECTION ONLY - BLOWER IS SEPARATE MODULE

Replacement part will LINK to AFTERMAKET REPLACEMENT PARTS, or original equipment when available to us.

If no link is active for the part you need, please call us for a special order quote at 602-997-1256.

Manufacturer: ESSICKAIR / CHAMPION COOLER
Model #: SAS/SAD100W, SAS/SAD10012W, SAS/SAD150W, SAS/SAD15012W
AS/AD100W, AS/AD10012W, AS/AD150W, AS/AD15012W, AS/AD/AU20012W
Delivered CFM Range: Wet section only - blower is separate module

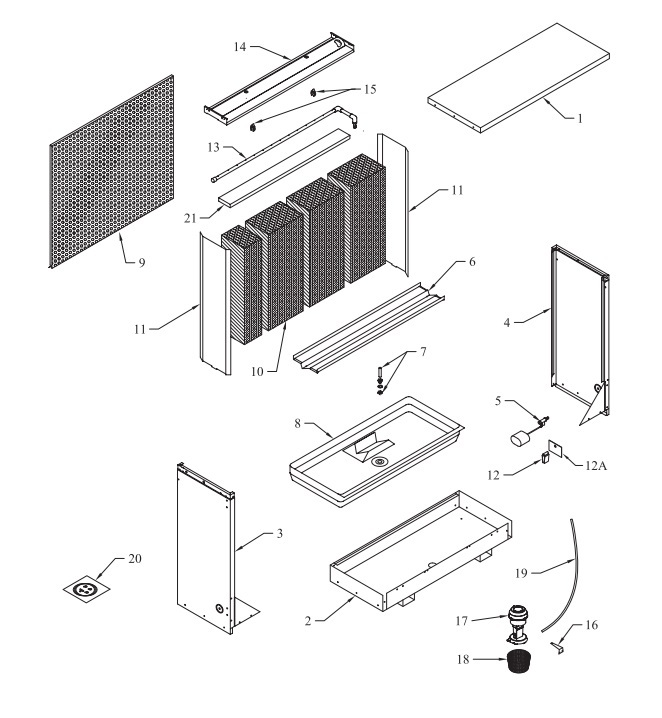

Fig. # Description 100W 150W 10012W 15012W 20012W
1 Top Access Panel 218115-002 218116-007 218115-016 218116-021 218116-035
2 Cabinet Bottom 318115-004 318116-009 318115-017 318116-022 318116-036
3 Side Panel, Right 318115-008 318116-013 318115-018 318116-023 318116-032
4 Side Panel, Left 318115-021 318116-039 318115-022 318116-040 318116-033
5 Float Valve 4164 4164 4164 4164 4164
6 Support, Media 218115-015 218116-020 218115-019 218116-024 218116-034
7 Overflow Assembly 9240 9240 9240 9240 9240
8 Water Reservoir 281028-001 281029-001 281034-001 281027-001 281037-001
9 Perforated Panel 220126-002 220126-003 220126-002 220126-003 220126-004
10 Evaporative Media Pad Set GPAD807 GPAD808 GPAD123 GPAD124 GPAD129
11 Media Shield 281026-003 281026-004 281026-006 281026-005 281026-008
12 Float Shield 281006 281006 281006 281006 281006
13 Water Distributor Assembly 3D-21R 3D-20R 3D-25R 3D-24R 3D-28R
14 Water Distributor Housing 322130-059 322140-041 322130-058 322140-042 322140-040
15 Water Distributor Tube Clamp 110591 110591 110591 110591 110591
16 Pump Mount 218122-004 218122-004 218122-004 218122-004 218122-004
17 Pump 120 VOLT D1023, 240 VOLT D1024 120 VOLT D1023, 240 VOLT D1024 120 VOLT D1023, 240 VOLT D1024 120 VOLT D1023, 240 VOLT D1024 120 VOLT D1023, 240 VOLT D1024
18 Pump Screen 4220 4220 4220 4220 4220
19 Tube, Water Delivery 4388 4388 4388 4388 4388
20 Bleed-Off Kit 5009 5009 5009 5009 5009
21 Polyester Pad 3062 3062 3062 3062 3062
