Aerocool Commercial WS080 Parts Breakdown
Wet Section ONLY - Blower Section is SEPARATE Module
Manufacturer: Phoenix Manufacturing
Model #: WS080
Replacement: WS080
Cabinet Dimensions: 51.5"h x 49"w x 17"d
Pad Size: 44.5" tall x 48" wide x 8" deep
Shipping Weight: 125 lbs
Operating Weight: 210 lbs

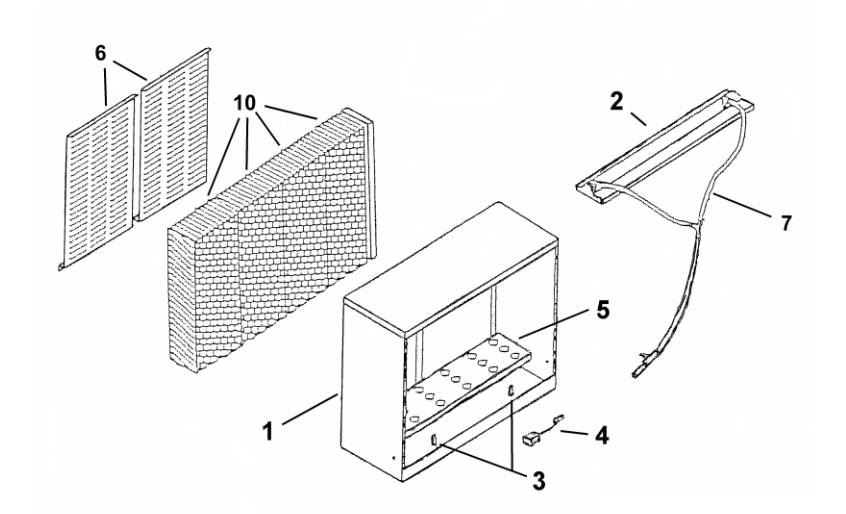

| Fig. # |
Description |
Original Part # |
Replacement Part # |
|---|
| 1 |
Wet Section Cabinet |
5-1-82 |
Call for Quote |
| 2 |
Water Distributor Assembly |
5-6-217 |
5-6-217 |
| 3 |
Standpipe and Drain Assembly |
5-6-5 |
1556 |
| 4 |
Float Valve |
5-6-1 |
4159 |
| 5 |
Media Support Tray |
5-1-83 |
5-1-83 |
| 6 |
Inlet Louver Panel |
5-1-62 |
Call for Quote |
| 7 |
Hose Assembly |
5-6-218 |
Call for Quote |
| 8 |
Parts Bag |
5-1-66 |
Call for Quote |
| 10 |
Media Pad Set |
5-2-166 |
GPAD400 |
| 11a (Not Shown) |
Pump 120 volt |
PK60LA |
1400 |
| 11b (Not Shown) |
Pump 240 volt |
PK62LA |
1402 |
