Adobeair Mobile Mastercool MMB14 A-C Parts Breakdown List
Manufacturer: Adobeair
Model #: MMB14 A-C
Replaced by: Hessaire MC61M
Industry Standard CFM: 4500
Delivered CFM Range: 3500-4500*
Outlet: Sidedraft
Cabinet Dimensions: 30”w x 34”d x 41-1/2”h
Outlet Dimension: 16” x 16”
Pad Size: 20-1/8"w X 28-3/8"h X 3"d (1 on each side)
Shipping Weight: 135 lbs
Operating Weight: 155 lbs*Range depends on motor & sheave selection and ductwork static pressure.

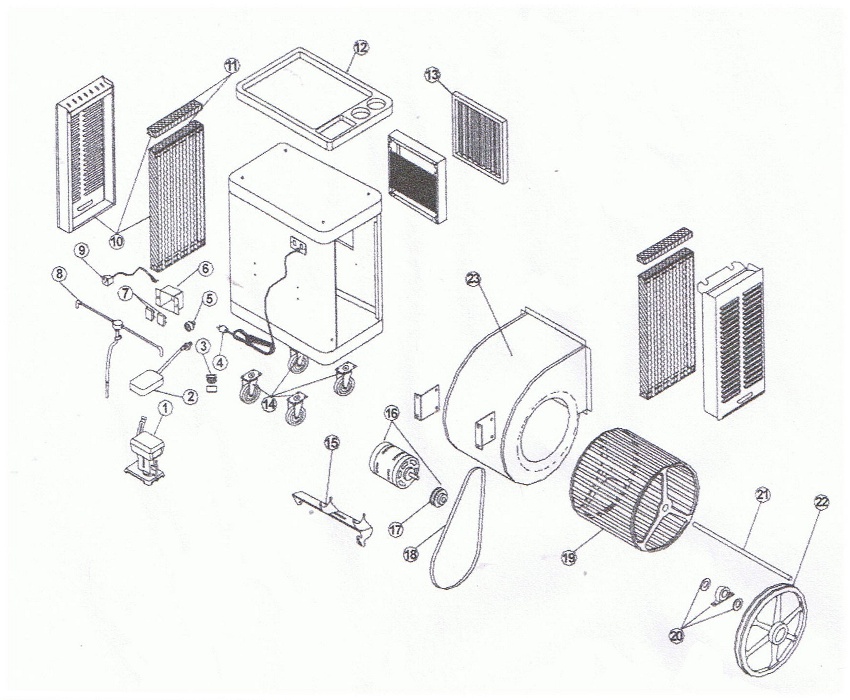

| Fig. # | Description | Replacement Part # |
|---|---|---|
| 1 | Water Pump | 120 Volt - 1442 |
| 2 | Float Valve Assembly | 4132 |
| 3 | Drain Assembly | 9051K |
| 4 | Power Supply Cord | 7512 |
| 5 | Hose Adapter Kit | 9056 |
| 6 | Switch Box Enclosure | RF071249 |
| 7 | Pump and Motor Switch Kit | RF030231 |
| 8 | Water Distributor Assembly | WC012A |
| 9 | Pump Receptacle | 7587 |
| 10 | Pad Frame Assembly | Call For Availability |
| 11 | Replacement Pad Media (Set of 2) | 3428 |
| 12 | Tool Tray | Unavailable |
| 13 | Grille Kit | Unavailable |
| 14 | Casters Kit | Unavailable |
| 15 | Motor Mount | N/A |
| 16 | Motor | MKS1225 |
| 17 | Motor Sheave | 6195 |
| 18 | Belt | 6559 |
| 19 | Blower Wheel | Unavailable |
| 20 | Bearings | 6633 |
| 21 | Blower Pulley | 6327 |
| 22 | Blower Shaft | 6709 |
| 23 | Complete Blower Assembly | N/A |
| 24 | Motor Capacitor | N/A |
