AD Series Downdraft Champion Cooler Commercial Blower Section Parts


THESE MODELS ARE THE BLOWER SECTION ONLY - WET SECTION IS SEPARATE MODULE

Replacement part will LINK to AFTERMAKET REPLACEMENT PARTS, or original equipment when available to us.

If no link is active for the part you need, please call us for a special order quote at 602-997-1256.

Manufacturer: ESSICKAIR / CHAMPION COOLER
Model #: AD100B, AD150B, AD200B
Delivered CFM Range: AD100 5000-11000, AD150 7000-17000

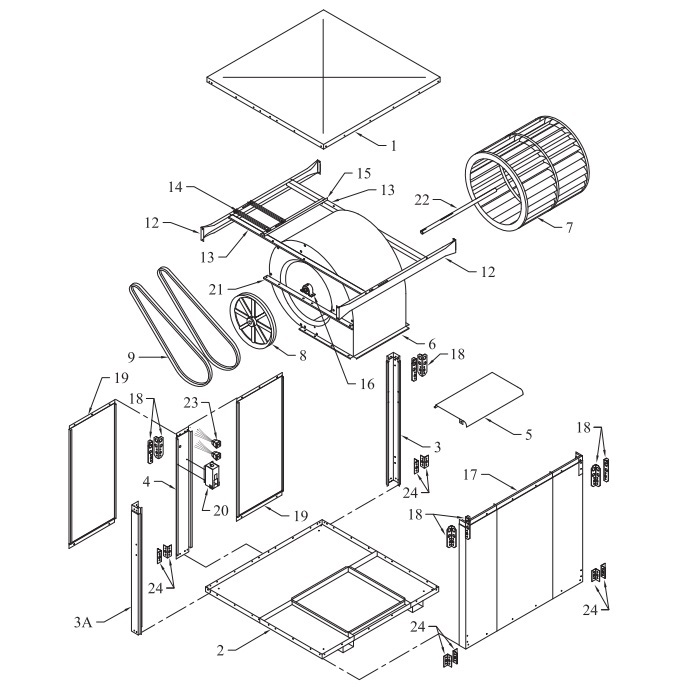

Fig. # Description AD100B AD150B AD200B
1 Top, Cabinet 218115-003 218116-008 216117-003
2 Bottom, Cabinet 318115-005 318116-010 318117-007
3 Corner Post, Left 318115-013 318116-018 318117-018
3a Corner Post, Right 318115-025 318116-050 318117-038
4 Divider Channel 218115-014 218116-019 218117-013
5 Cut-off Plate 320102-002 318112-004 318112-003
6 Blower Housing 322115-002 320116-001 320117-001
7 Blower Wheel 21BW 25BW 29BW-BR
8 Pulley, Blower Wheel 110297 110298 110298
9 Drive Belt See Options See Options See Options
10 Motor See Options See Options See Options
11 Pulley, Motor See Options See Options See Options
12 Channel Retainer 214007-001 214007-006 214109-001
13 Motor Mount Support 214118-005 214116-008 206102-001
14 Motor Mount Adjustable Channel 214112-002 214112-004 214112-004
15 Motor Mount Crossbrace 214001-005 214001-009 214001-007
16 Bearings, Blower 110355 110356 110356
17 Front Panel 318115-024 318116-048 318117-011
18 Lift Bracket 212104-001 212104-001 212104-001
19 Inspection Panel 220115-003 220116-004 220116-007
20 Electrical Junction Box 322009-003 322009-003 322009-003
21 Bearing Mount Support 206100-002 206100-004 206100-005
22 Shaft, Blower Wheel 110157 110158 110159
23 Receptacle, Pump 110361 110361 110361
24 Connect Bracket 214121-001 214121-001 214121-001
:
