Adobeair Mastercool EC630 A-F Parts Breakdown List

Manufacturer: Adobeair
Model #: EC630 A-H
Replaced by: Aerocool Pro PD6802C (120 volt), PD6232C (240 volt)
Industry Standard CFM: 6800
Delivered CFM Range: 3600-4600*
Outlet: Downdraft
Cabinet Dimensions: 42”w x 43”d x 32-1/4”h
Outlet Dimension: 19-3/4” x 19-3/4”
Pad Size: 40”w x 28”h x 8”d
Shipping Weight: 190 lbs
Operating Weight: 250 lbs

*Range depends on motor & sheave selection and ductwork static pressure.

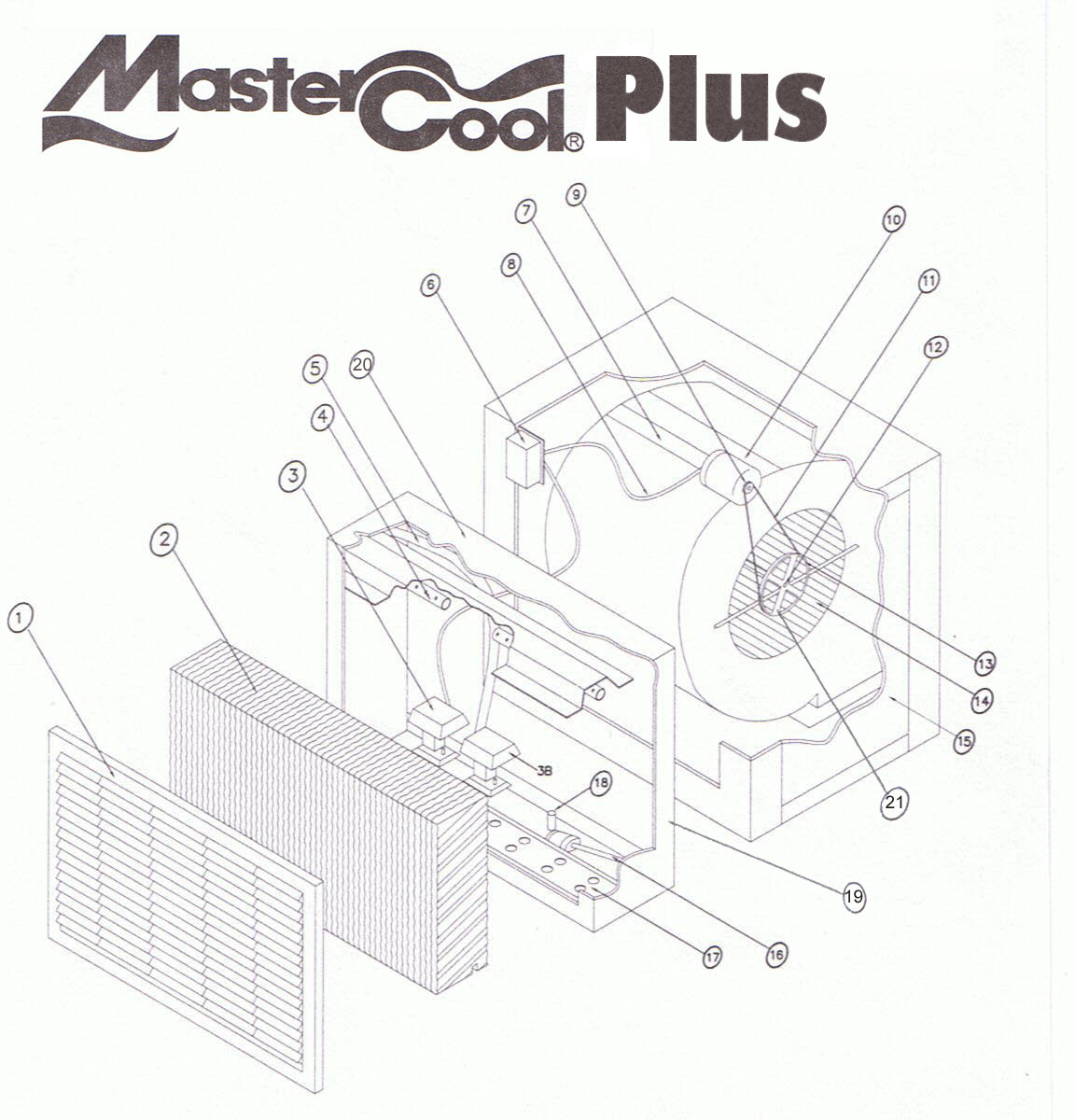

Fig. # Description Original Part # Replacement Part #
1 Inlet Panel Assembly IP200B RF010069
2 Pad Media DPM200B GPAD200
3 Water Pump 120 volt - CP200A 120 Volt - 1442
240 volt - CP400A 240 Volt - 1443
3b Purge Pump 120 Volt - CM120 120 Volt - 1540
240 Volt - CM240 240 Volt - 1542
4 Water Distributor with Cover RF040024 RF040024
5 Pump Hose N/A 4372
6 Control Box with Receptacles and Thermostat 120 Volt - RK123A 120V - 120 volt Retrofit Kit
240 Volt - RK123A 240v - 240 Volt Retrofit Kit
7 Motor Support Bracket RF070358 RF070358
8 Motor Cord
120 Volt 7579
240 Volt 7581
9 Motor Sheave for 3/4hp Motor For 3/4hp motor 6195
9b Motor Sheave for 1hp Motor For 1hp Motor 6198
10 2 Speed Motor only
120 Volt 1 HP 2395
120 Volt 3/4 HP 2206
240 Volt 1 HP 2396
240 Volt 3/4 HP 2189
10b 2 Speed Motor Kit - Includes Motor, Cord, Sheave & Clamps
120 Volt 1 HP 940J MKM125
120 Volt 3/4 HP 972J MKM3425
240 Volt 1 HP 941J MKM120
240 Volt 3/4 HP MKM3420
11 Belt (Old units used a 61" belt. Newer units use 59") 4L590 6559
12 Shaft 3/4" RF021189 SHAFTSOL2434
13 Blower Pulley 11" x 3/4" 6328
14 Blower Wheel BU197A
15 Blower Access Panel RF010068
16 Float Valve Assembly 4132
17 Media Support Tray RF010130 RF010130
18 Overflow And Drain Assembly SP200B 1556
19 Wet Section "U" Pan (Sides and bottom, all 1 piece) RM600A RF090700
20 Wet Section Top Panel RF060286 RF060286
21 Pillow Block Bearing (Need 1 for each side) 87411B
:
