Aerocool Commercial IS701 Parts Breakdown
Blower Section ONLY - Wet Section is SEPARATE Module (2 wet sections required)
Manufacturer: Phoenix Manufacturing
Model #: IS701
Replacement: IS701
Delivered CFM Range: 5000-20000*
Outlet: Sidedraft
Cabinet Dimensions: 51.5"h x 49"w x 49"d
Outlet Dimension: 31.75" x 31.75"
Pad Size: Determined by wet section modules
Shipping Weight: 400 lbs
Operating Weight: 775 lbs (with wet sections)*Range depends on motor & sheave selection, wet section pad thickness, and ductwork static pressure.

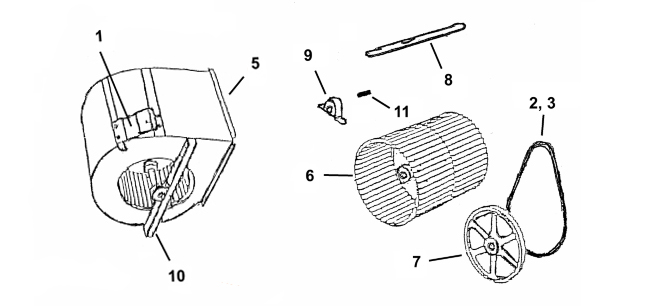

| Fig. # | Description | Replacement Part # |
|---|---|---|
| 1 | Motor Mount | Call for Quote |
| 2 | Belt | 6592 (2 required) |
| 5 | Blower Assembly Complete | Call For Quote |
| 6 | Blower Wheel Assembly | 5-3-161 |
| 7 | Blower Pulley | 5-3-199 |
| 8 | Shaft | 5-3-6 |
| 9 | Bearing Assembly | HCPP206-19 |
| 10 | Bearing Support Bar | Call For Quote |
| 11 | Shaft Key | 6749 |
:
