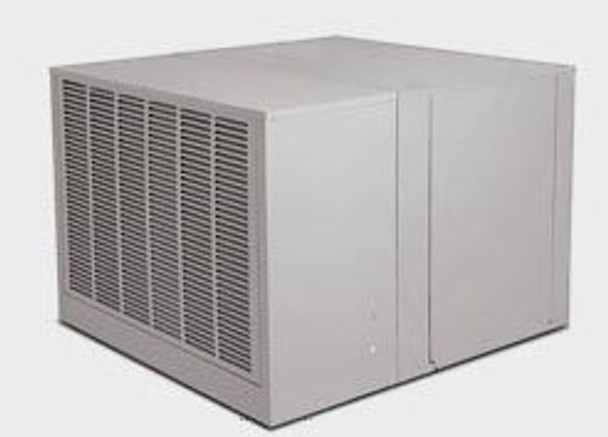

Aerocool Trophy Sidedraft Evaporative Cooler 12" Pads 6800 CFM (2000 Sq. Ft)

(No reviews yet) Write a Review
250.00 LBS


Aerocool Trophy Series TH6812 evaporative cooler, base unit only. Includes 120 volt pump, float, drain, belt, pads and bleed off. Motor NOT INCLUDED.

See below for motor and accessory ADD ON OPTIONS.

One of these can typically service up to 2000 square feet of residential space with ceiling height of 8'. Features rigid cellulose (Celdek) pad media.

We normally stock this unit. Please be advised that during the busy summer months we may sell out and lead times from the factory can be 45+ days for re-order.

Product Brochure with Sizing Specs

Add on Motors and Accessories

(Click links and add desired items to cart)

2395 1 HP 120 volt
Matching motor sheave 6198 4.15 x 5/8
2396 1 HP 240 volt
Matching motor sheave 6198 4.15 x 5/8
2206 3/4 HP 120 volt
Matching motor sheave 6194 3-3/4 X 1/2

7623 Low Voltage Thermostat and Control Box Package
7617 Line Voltage Digital Thermostat
7110 6 position Rotary Switch

1541 Purge Pump Add On
5009 Bleed Off Kit

Please contact us if you need help determining options for your application.

Longevity & Low Maintenance
Utilizing a single inlet design, AeroCool provides the ultimate protection available for the longevity of your cooler. The all-metal construction of the wet module is protected from the damaging effects of typical deposits found in most water systems. High efficiency evaporative cooling, low maintenance, and a long life of AeroCool makes theses coolers your award winner.

The Aerocool evaporative cooler beats the others cold, it is more efficient and less costly to operate. In fact, it is up to 13% more efficient than conventional coolers.
Rigid media material provides cooler air and can last up to 10 times longer than old style aspen pads.

Low Sump Pump The most powerful pump on the market today. US Patent #5,527,157

Easy Access Gravity-Held Doors Easy to remove access doors reduce maintenance time.

MIRROSCOPIC Blower Shaft Finishing A PMI Exclusive, This yields a 90% improvement over the industry standard ground finish. This means quieter operation and longer bearing and shaft life for your cooler!

Peblar XT Protective Powder Coat Our exclusive Peblar XT surface preparation is the highest quality architectural grade finish used in the industry. This durable multi-layer bonded treatment protects your cooler against corrosion and assures years of reliable service.

Optional Accessories

Pro-Shield This weatherizing panel prohibits wind and cold from entering into your home during the off-season. Easy to install, media protection is also afforded thereby increasing the life of the unit.
Also great for make-up air, greenhouses, kitchens, grow rooms, dog kennels, garages, mechanic bays, dry cleaners, laundromats, warehouses and anywhere else where fresh, clean, economic cooling is needed.

Discount Available for In-Store Pick Up in Phoenix, AZ. Call 602-997-1256 for details.
