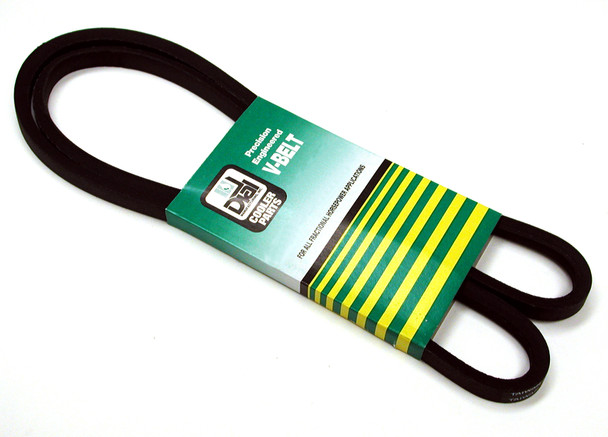

Dial A86 / 4L880 V-Belt - 1/2 in. x 88 in. Outside Length

Dial A86 / 4L880 replacement V-belt with a nominal 88-inch outside circumference and 1/2-inch top width for compatible belt-driven equipment.

Specifications

• Belt size: A86 / 4L880
• Nominal outside circumference: 88 inches
• Nominal A-series inside circumference: 86 inches
• Top width: 1/2 inch
• Nominal thickness: 5/16 inch
• Single V-belt for fractional-horsepower drive applications

Applications & Fit

For fans, blowers, air handlers and other compatible belt drives used in commercial and industrial equipment maintenance. Also used in evaporative cooler blower drives that specify this belt size. Match the equipment’s required belt section, length and duty rating before ordering.

The 4L880 designation uses outside circumference in tenths of an inch. A86 identifies the nominal A-series inside length. Compare the same measurement basis when selecting a replacement.
