Essickair/Champion 10/12SD Parts Breakdown

champion-sd-commercial.jpg />

Manufacturer: Essickair/Champion
Model #: 10/12SD
Replaced by: Phoenix Mfg. H1425
Industry Standard CFM: 12000
Delivered CFM Range: 6000-11000*
Outlet: Sidedraft
Cabinet Dimensions: 50”w x 50”d x 53”h
Outlet Dimension: 26-7/8” x 26-7/8”
Pad Size: 22" x 24"  (4 on each side)
Shipping Weight: 470 lbs
Operating Weight: 660 lbs

*Range depends on motor & sheave selection and ductwork static pressure.

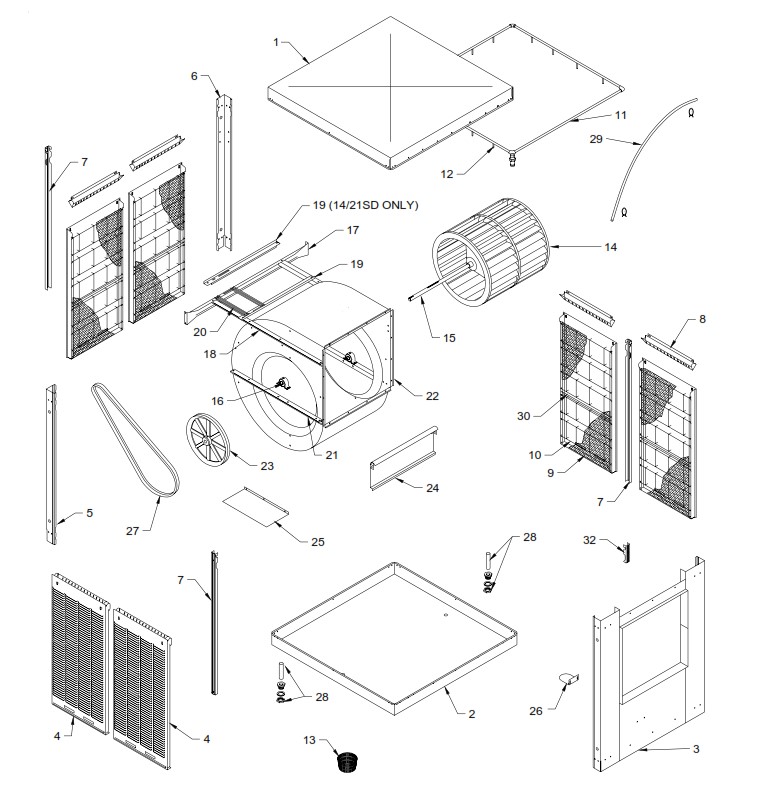

Fig. # Description Original Part # Replacement Part #
1 Top Pan 218116-037 Call for Quote
2 Bottom Pan 218116-038 Call for Quote
3 Front Panel 318116-002 Call for Quote
4 Pad Frame Complete 322116-104 322116-104
5 Corner Post Right 218003-001 Call for Quote
6 Corner Post Left 218003-003 Call for Quote
7 Center Post 218002-001 Call for Quote
8 Water Trough 226003-001 4798
9 Aspen Pad Media (2 per frame) 110097 AP2224
10 Pad Retainers 3PW-8 7972
11 Water Distributor Assembly 3D-11 Call for Quote
12 Nozzle for Water Distributor 110569 4662
13 Pump Screen 281001-001 4220
14 Blower Wheel 110750 or 25BW Call for Quote
15 Shaft 110158 5-3-5
16 Bearings 110358 WUCP20619
17 Channel Retainer Support 214007-007 Call for Quote
18 Motor Mount Support 214116-003 Call for Quote
19 Motor Mount Crossbrace 214001-009 Call for Quote
20 Motor Mount Adjustable Channel Call for Quote
21 Bearing Mount Support 214116-001 Call for Quote
22 Blower Housing 320116-001 Call for Quote
23 Blower Pulley 110281 5-3-62
24 Cut off Plate Call for Quote
25 Air Baffle Call for Quote
26 Pump Mount 214003-023 Call for Quote
27 Belt 110232 6598
28 Over Flow Assembly 3OA-1 9240
29 Water Delivery Tube 310717 4388
30 Deflecter Strip Call for Quote
31 Float Mount N/A
32 Water Distributor Support Bracket Call for Quote
