Adobeair Mastercool CMC631 A-C Parts Breakdown List
Manufacturer: Adobeair
Model #: CMC631 A-H
Replaced by: Aerocool Pro PD6802C (120 volt)
Industry Standard CFM: 6800
Delivered CFM Range: 3600-4600*
Outlet: Downdraft
Cabinet Dimensions: 42”w x 43”d x 32-1/4”h
Outlet Dimension: 19-3/4” x 19-3/4”
Pad Size: 40”w x 28”h x 8”d
Shipping Weight: 190 lbs
Operating Weight: 250 lbs*Range depends on motor & sheave selection and ductwork static pressure.

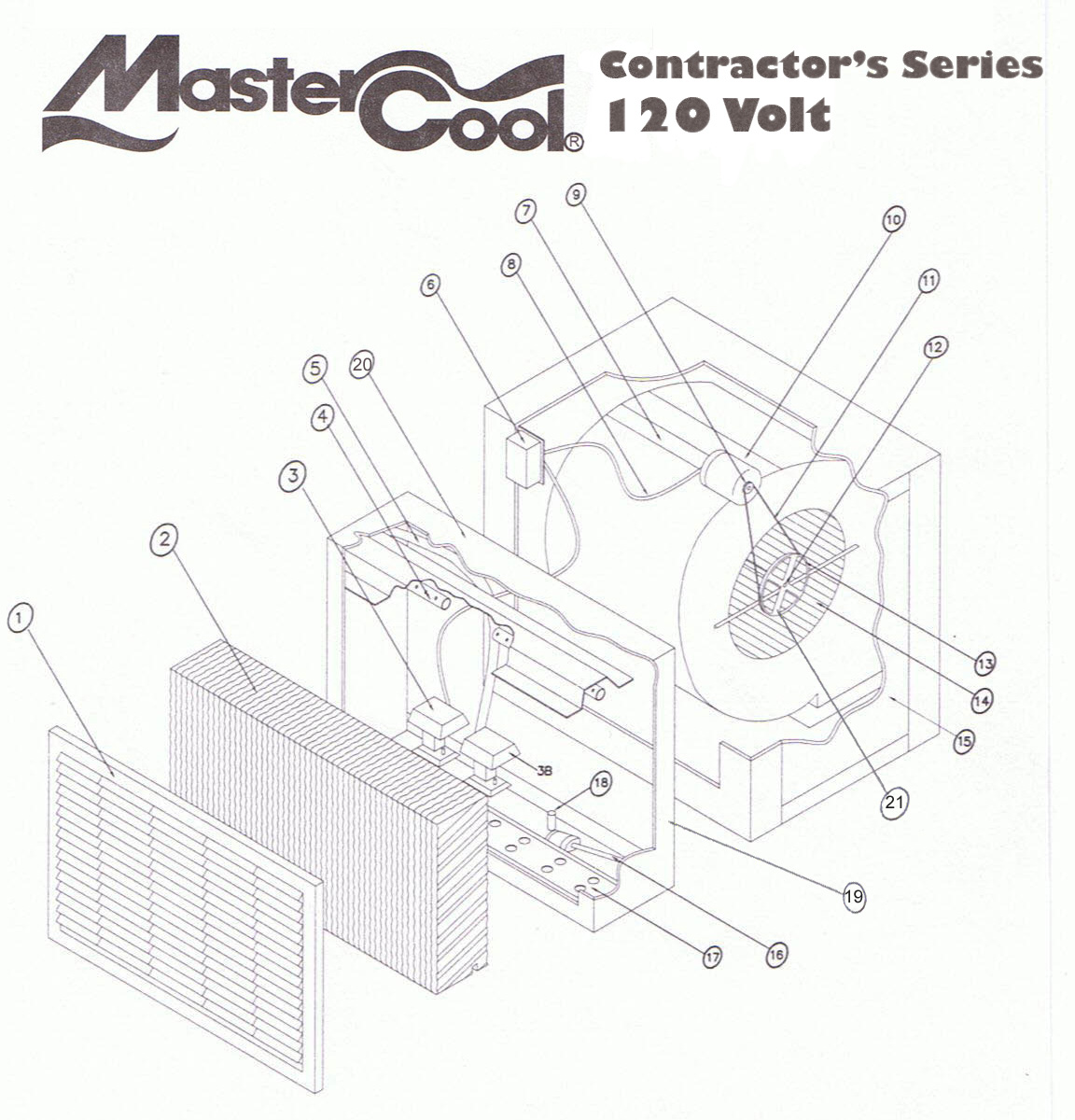

| Fig. # | Description | Replacement Part # |
|---|---|---|
| 1 | Inlet Panel Assembly | RF010069 |
| 2 | Pad Media | GPAD200 |
| 3 | Water Pump | 120 Volt - 1442 |
| 3b | Purge Pump | 120 Volt - 1540 |
| 4 | Water Distributor with Cover | RF040024 |
| 5 | Pump Hose | 4372 |
| 6 | Control Box with Receptacles and Thermostat | 120V - 120 volt Retrofit Kit |
| 7 | Motor Support Bracket | RF070358 |
| 8 | Motor Cord | |
| 120 Volt | 7579 | |
| 9 | Motor Sheave for 1hp Motor | For 1hp Motor 6198 |
| 10 | 2 Speed Motor only | |
| 120 Volt 1 HP | 2395 | |
| 10b | 2 Speed Motor Kit - Includes Motor, Cord, Sheave & Clamps | |
| 120 Volt 1 HP | MKM125 | |
| 11 | Belt | 6559 |
| 12 | Shaft 3/4" | SHAFTSOL2434 |
| 13 | Blower Pulley 11" x 3/4" | 6328 |
| 14 | Blower Wheel | BU197A |
| 15 | Blower Access Panel | RF010068 |
| 16 | Float Valve Assembly | 4132 |
| 17 | Media Support Tray | RF010130 |
| 18 | Overflow And Drain Assembly | 1556 |
| 19 | Wet Section "U" Pan (Sides and bottom, all 1 piece) | RF090700 |
| 20 | Wet Section Top Panel | RF060286 |
| 21 | Pillow Block Bearing (Need 1 for each side) | 87411B |
:
