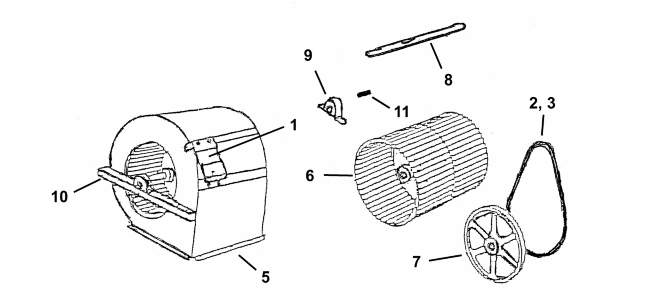

Adobeair MD524 Parts Breakdown
BLOWER SECTION ONLY - WET SECTION IS SEPARATE MODULE
Manufacturer: Adobeair
Model #: MD524
Replaced by: ID500
Delivered CFM Range: Blower section only - Wet section is separate module
Outlet: Downdraft
Cabinet Dimensions: 51.5"h x 49"w x 49"d
Outlet Dimension: 26.75" x 26.75"
Pad Size: Determined by wet section module
Shipping Weight: 365 lbs
Operating Weight: 450 lbs
| Fig. # |
Description |
Original Part # |
Replacement Part # |
| 1 |
Motor Mount |
RK104A |
5-3-120 |
| 2 |
Belt |
P301278A |
6580 |
| 5 |
Blower Assembly Complete |
BA244A |
Possible Replacement Available - Call |
| 6 |
Blower Wheel Assembly |
BW241A |
5-3-56 |
| 7 |
Blower Pulley |
P503202A |
5-3-198 |
| 8 |
Shaft |
M315201A |
5-3-5 |
| 9 |
Bearing Assembly (Need 2) |
AP619601A (or A904601A) |
HCPP206-19 |
| 10 |
Bearing Support Bar |
N/A |
N/A |
| 11 |
Shaft Key |
P5-615-1 |
6749 |
|
